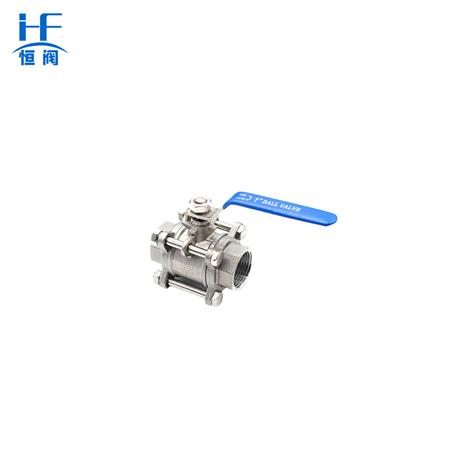

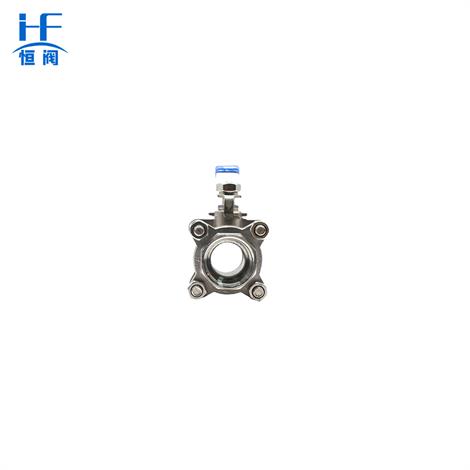

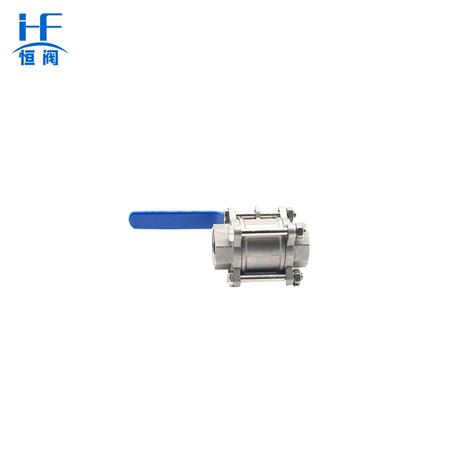

Stainless steel three-piece thread ball valve is a ball with a circular channel as the opening and closing parts, the ball rotates with the valve stem to achieve the opening and closing action of the valve. The opening and closing part of the ball valve is a sphere with holes, rotating around the axis perpendicular to the channel, so as to achieve the purpose of opening and closing the channel.
WCB、 Stainless steel、CF8、CF8M
The valve applied in petroleum, chemical, water treatment, pharmaceutical industry.

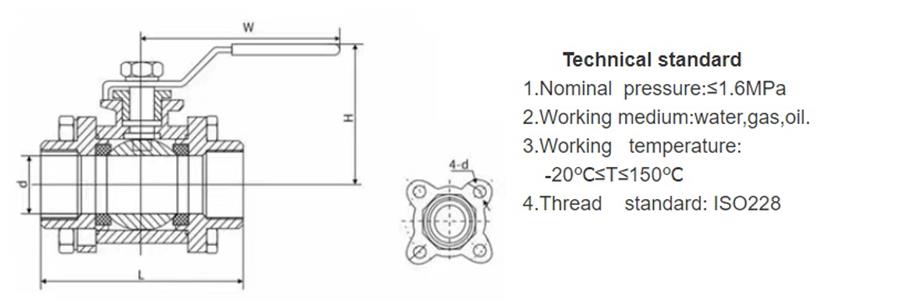

| DN | D | L | H | W | 4-d |
| 6 | 11.6 | 65 | 48 | 120 | 7 |
| 10 | 12.7 | 65 | 48 | 120 | 7 |
| 15 | 15 | 72 | 54 | 120 | 8 |
| 20 | 20 | 83 | 57 | 130 | 8.5 |
| 25 | 25 | 91 | 72 | 154 | 8.5 |
| 32 | 32 | 103 | 79 | 154 | 10 |
| 40 | 38 | 110 | 81 | 185 | 10 |
| 50 | 50 | 131 | 97 | 185 | 11 |
| 65 | 65 | 164.5 | 130 | 250 | 16 |
we will contact you in 6 hours as soon as we can.
We are factory.
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
We adhere to strict quality control procedures that begin with product design and carry through to the end of the production process using state-of -the-art quality control equipment.
We are a global stocking valve distributor with a vast inventory of valves for any job.
