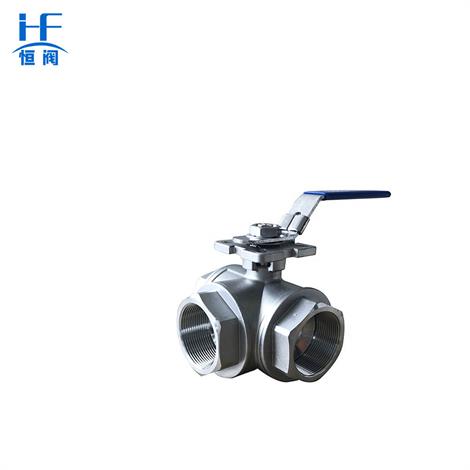

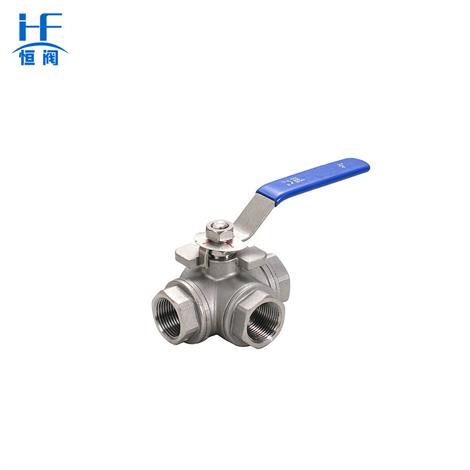

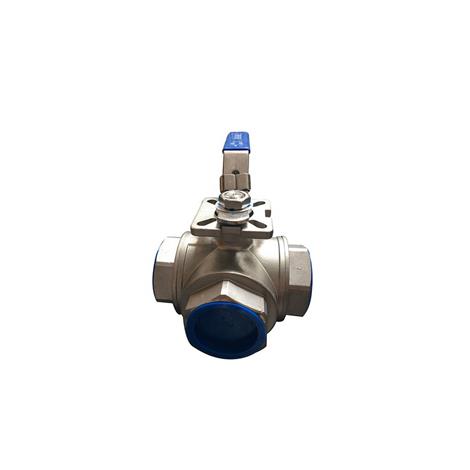

Manual three-way screw ball valve seat adopts elastic sealing structure, reliable sealing, easy opening and closing. The valve stem adopts the down-mounted structure with reverse seal, and the valve stem will not be rushed out when the valve chamber is abnormally pressurized.
This kindof valves are suitable for water supply, petrochemical, metallurgy, mining, textile, energy, paper, food, steel and other pipeline systems to switch the flow direction of the medium and the diversion of the medium or mixed fluid
WCB ,CF8,CF8M,Brass

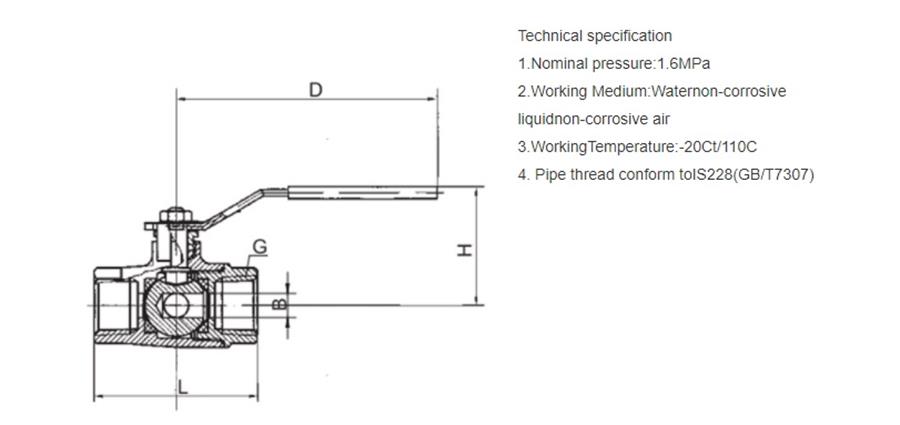

DN | SIZE | L | H | D | B |
15 | 1/2 | 60.5 | 45.5 | 80 | 9 |
20 | 3/4 | 69 | 51 | 100 | 12.5 |
25 | 1 | 81.5 | 54 | 100 | 17 |
32 | 1/4 | 97 | 64 | 130 | 23 |
40 | 1/2 | 103 | 67.5 | 130 | 28 |
50 | 2 | 121 | 79.5 | 150 | 36 |
we will contact you in 6 hours as soon as we can.
We are factory.
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
We adhere to strict quality control procedures that begin with product design and carry through to the end of the production process using state-of -the-art quality control equipment.
We are a global stocking valve distributor with a vast inventory of valves for any job.
