Ball valve is mainly applicable for cutting off or connecting the medium in the pipeline. The hard-seated V-ball valve has a high shearing force between the V-ball and the seat, particularly suitable for media with fibrous, small solid particles.
Ball valve has its own compact structure, reliable sealing, simple structure, convenient maintenance, sealing surface and spherical surface are often in a closed state. It is not easy to be washed by the medium, but easy to operate and maintain. It is also suitable for water, solvents, acids and natural gas and other general working media. The ball valve is suitable for poor working conditions of the medium, such as oxygen, hydrogen peroxide, methane and ethylene, etc..In various industries, it is widely used. Ball valve body can be integral, can also be combined.

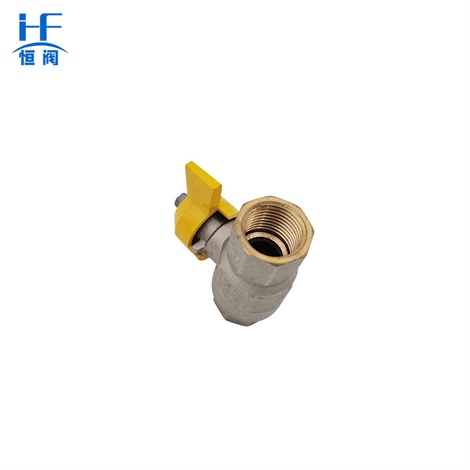

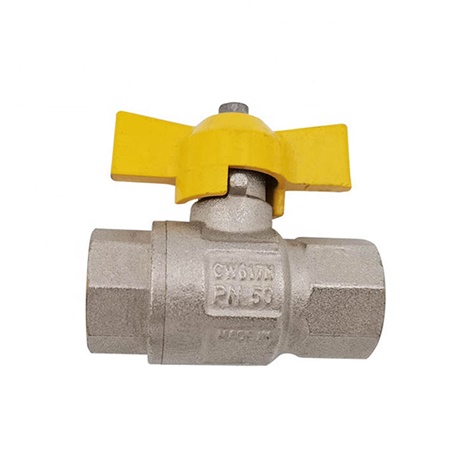

The valve body is made of brass.

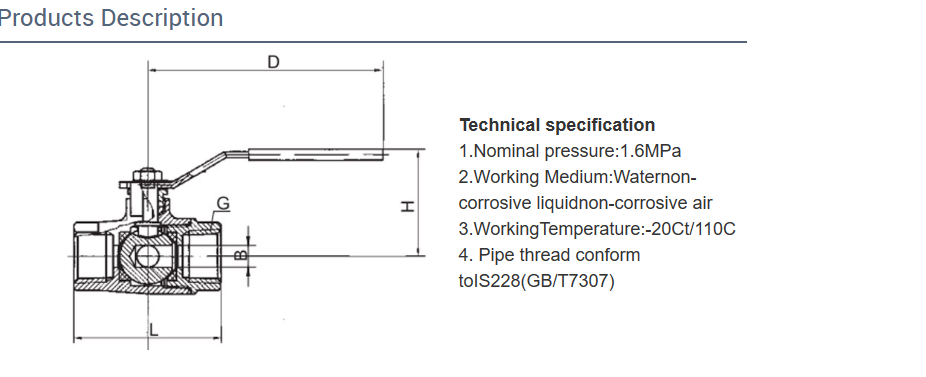

| DN | SIZE | L | H | D | B |
| 15 | 1/2 | 60.5 | 45.5 | 80 | 9 |
| 20 | 3/4 | 69 | 51 | 100 | 12.5 |
| 25 | 1 | 81.5 | 54 | 100 | 17 |
| 32 | 1 1/4 | 97 | 64 | 130 | 23 |
| 40 | 1 1/2 | 103 | 67.5 | 130 | 28 |
| 50 | 2 | 121 | 79.5 | 150 | 36 |
We will contact you in 6 hours as soon as we can.
We are factory.
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
We adhere to strict quality control procedures that begin with product design and carry through to the end of the production process using state-of -the-art quality control equipment.
We are a global stocking valve distributor with a vast inventory of valves for any job.
