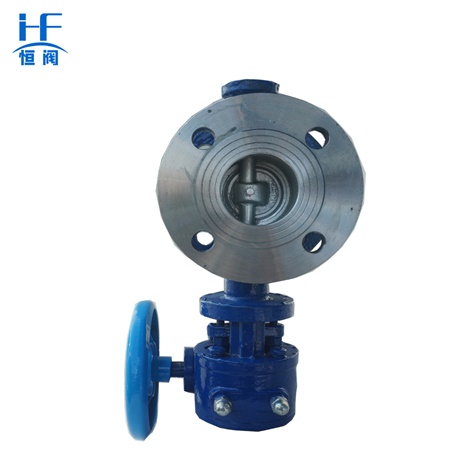

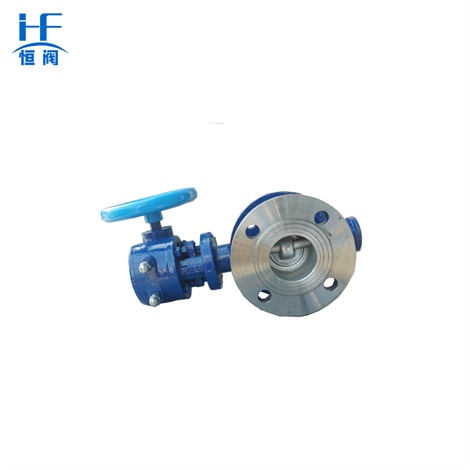

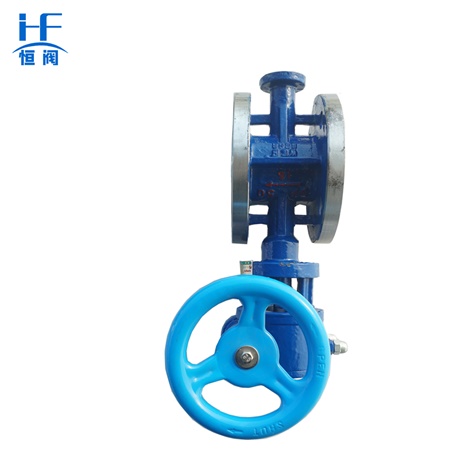

Hard sealed double flange butterfly valve

Product Description

Application field

Valves are versatile components used in a wide range of industries including power, metallurgy, petrochemical, hydraulics, paper, pharmaceuticals, food and energy. These valves are for flow control and interception of non-corrosive gases, liquids, semi-liquids and solid powders in pipelines and vessels. Installation is possible regardless of the medium and flow pattern. It is possible to adjust the distance between the two flanges during installation.

Work principle

The butterfly valve consists of a disc-shaped butterfly plate made up of two symmetrical discs. Each side of the plate base plate has a pin shaft perpendicular to the shaft line and integrated with the plate. The opening and closing action is achieved by turning the handwheel or handle. This turns the moving ring inwards and drives the disc seat to rotate together.

Main material

carbon steel ,stainless steel，etc.

Benefits

Own factory, factory price

14-year valve professional experience

Years of State-owned EnterpriseCooperation

We support OEM ODM

Adequate supply

Professional team and after services

Parameter

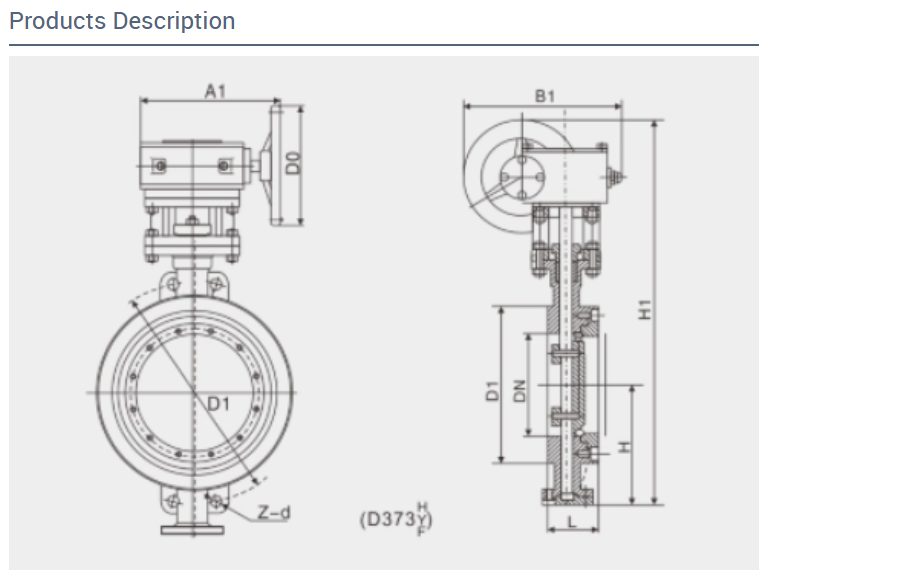

主要外形连接尺寸Main Boundary Connection Dimensions 单位Unit:mm
DN		结构长度L Structure length		外形尺寸(参考值)Boundary dimensions(reference)										法兰尺寸(标准值) Fange dmaracrs tlandadt				D373H WT(Kg
DN		结构长度L Structure length		H	D373H			D673H			D973H			PN0.6MPa		PN1.0MPa
毫类而 m	英寸 n	短short	长Long	H	H1	A1	B1	H2	A2	B2	H3	A3	B3	D1	Z-d	1	Z-d
40	11/2	43	43	107	330	180	200	625	245	72	530	250	255	100	4-14	110	4-18	10
50	2	43	43	112	350	180	200	625	245	72	530	250	255	110	4-14	125	4-18	12
65	21/2	46	46	115	370	180	200	625	245	72	530	250	255	130	4-14	145	4-18	13
80	3	49	64	125	380	180	200	645	245	72	565	250	255	150	4-18	160	8-18	15
100	4	56	64	138	420	180	200	675	355	92	600	250	255	170	4-18	180	8-18	17
125	5	64	70	164	460	180	200	715	355	92	640	250	255	200	8-18	210	8-18	27
150	6	70	76	175	555	270	280	800	355	92	704	300	315	225	8-18	240	8-22	29
200	8	71	89	215	780	400	425	850	250	170	775	300	315	280	8-18	295	8-22	45
250	10	76	114	243	840	400	425	925	250	170	945	300	315	335	12-18	350	12-22	69
300	12	83	114	285	995	450	560	1035	450	220	1070	300	315	395	12-22	400	12-22	86
350	14	92	127	320	1050	450	560	1070	450	220	1140	300	315	445	12-22	460	16-22	122
400	16	102	140	350	1220	535	580	1190	450	220	1210	300	315	495	16-22	515	16-26	141
450	18	114	152	350	1280	535	580	1250	650	280	1335	575	714	550	16-22	565	20-26	191
500	20	127	152	380	1365	535	580	1290	650	280	1415	575	714	600	20-22	620	20-26	260
600	24	154	178	435	1460	570	660	1455	850	380	1605	656	810	705	20-26	725	20-30	380
700	28	165	229	480	1520	750	550	1585	850	380	1844	656	810	810	24-26	840	24-30	450
800	32	190	241	530	1710	750	550	1700	1250	380	2040	656	810	920	24-30	950	24-33	650
900	36	203	241	595	1810	750	550	1965	1250	380	2255	785	863	1020	24-30	1050	28-33	830
1000	40	216	300	650	1900	900	750	2015	1250	380	2380	785	863	1120	28-30	1160	28-36	1050
1200	48	254	360	775	1180	1000	925	2250	1250	380	2640	785	863	1340	32-33	1380	32-39	1400
1400	56	279	390	870	1450	1000	925		=	=	2886			1560	36-36	1590	36-42	1900
1600	64	318	440	1000	1730	1000	925			=	3156			1760	40-36	1820	40-48	2900
1800	72	356	490	1110	3020	1100	980				3421			1970	44-39	2020	44-48	4000
2000	80	406	540	1250	3270	1100	980				3685			2180	48-42	2230	48-48	5300

Project Case

Packing and Shipping

FAQ

How long will you give me the reply?

we will contact you in 6 hours as soon as we can.

Are you trading company or manufacturer?

We are factory.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

What are your quality control procedures?

We adhere to strict quality control procedures that begin with product design and carry through to the end of the production process using state-of -the-art quality control equipment.
