water,oil,powderDuctile iron precision casting shell

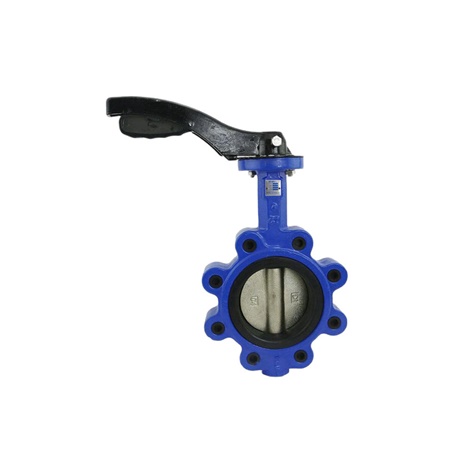

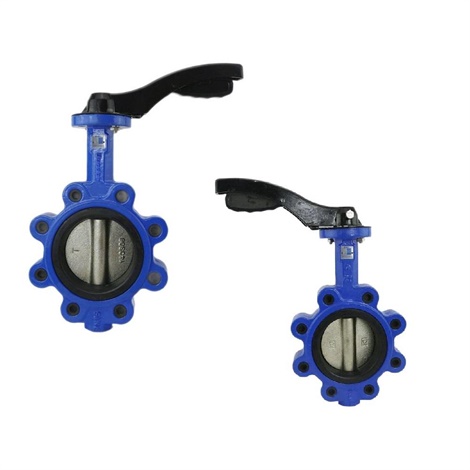

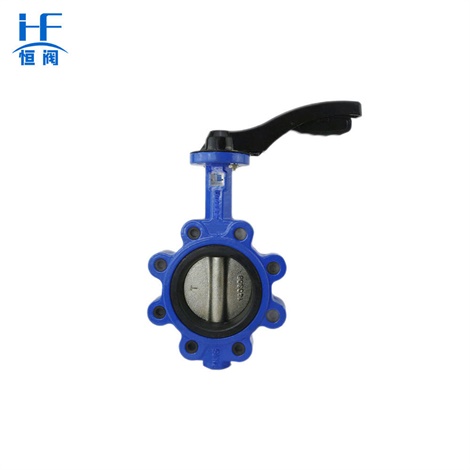

The valve body and bonnet are made of ductile iron with high strength and corr osion resistance.The valve seat and valve body are integrally formed by precision casting withoutany processing
The valve body is made of precision casting and the precise geometry makes it possible to ensure the sealing of the valve without any other processing inside the valve

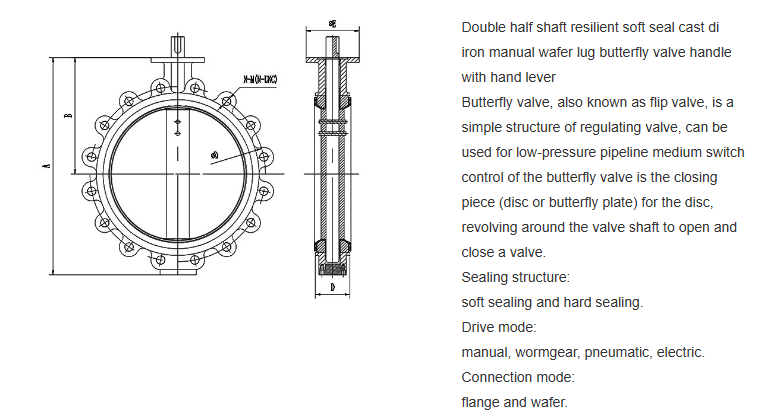

| DN | NPS | A | B | C | L |
| 50 | 2" | 165 | 125 | 99 | 108 |
| 65 | 2 1/2" | 185 | 145 | 118 | 112 |
| 80 | 3" | 200 | 160 | 132 | 114 |
| 100 | 4" | 220 | 180 | 156 | 127 |
| 125 | 5" | 250 | 210 | 184 | 140 |
| 150 | 6" | 285 | 240 | 211 | 140 |
| 200 | 8" | 340 | 295 | 266 | 152 |
| 250 | 10" | 395 | 350 | 319 | 165 |
| 300 | 12" | 445 | 400 | 370 | 178 |
| 350 | 14" | 505 | 460 | 429 | 190 |
| 400 | 16" | 565 | 515 | 480 | 216 |
| 450 | 18" | 615 | 565 | 530 | 222 |
| 500 | 20" | 670 | 620 | 582 | 229 |
| 600 | 24" | 780 | 725 | 682 | 267 |
| 700 | 28" | 895 | 840 | 794 | 292 |
| 800 | 32" | 1015 | 950 | 901 | 318 |
| 900 | 36" | 1115 | 1050 | 1001 | 330 |
| 1000 | 40" | 1230 | 1160 | 1112 | 410 |
| 1200 | 48" | 1455 | 1380 | 1328 | 470 |
| 1400 | 56" | 1675 | 1590 | 1530 | 530 |
| 1600 | 64" | 1915 | 1820 | 1750 | 600 |
| 1800 | 72" | 2115 | 2020 | 1950 | 670 |
| 2000 | 80" | 2325 | 2230 | 2150 | 760 |
| 2200 | 88" | 2550 | 2440 | 2295 | 800 |
| 2400 | 96" | 2760 | 2650 | 2495 | 850 |
we will contact you in 6 hours as soon as we can.
We are factory.
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
We adhere to strict quality control procedures that begin with product design and carry through to the end of the production process using state-of -the-art quality control equipment.
We are a global stocking valve distributor with a vast inventory of valves for any job.
