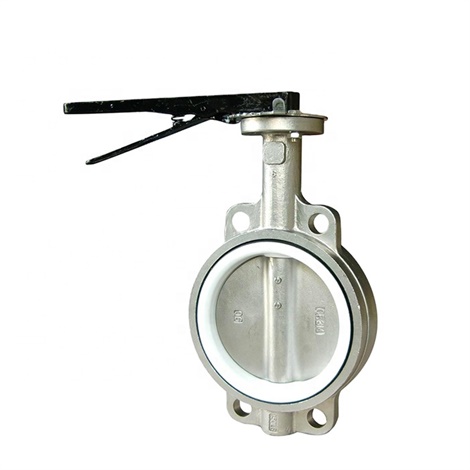

The PTFE butterfly valve is lined with PTFE in order to meet the needs of some special fields such as strong acid and alkali corrosive environment, petroleum, chemical industry, food, etc., in the conventional butterfly valve and the valve plate lined with PTFE, so that the medium and the valve body are isolated to achieve the effect of corrosion prevention.
CF8 WCB QT450

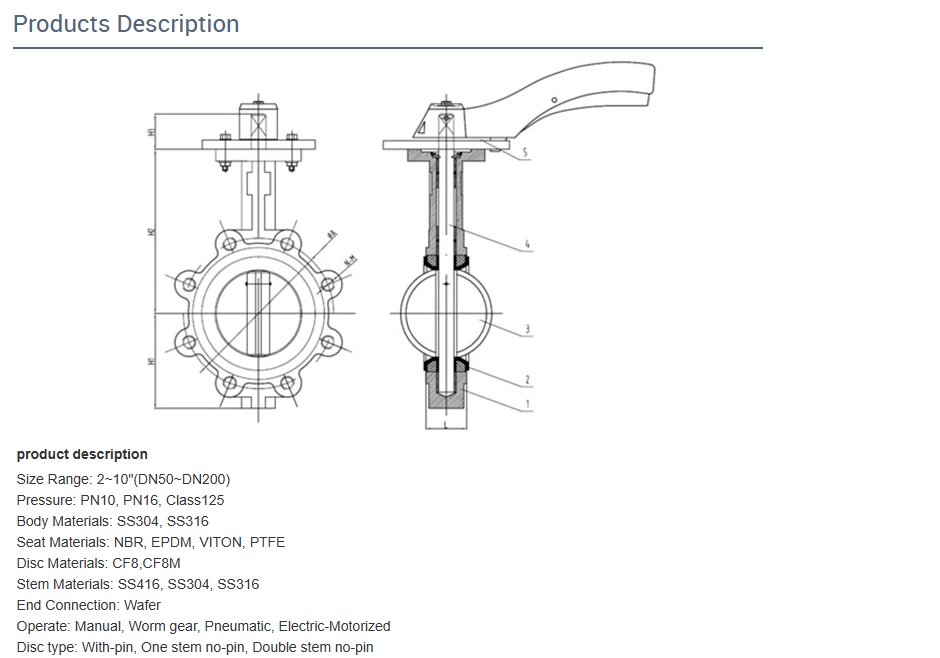

| Name | 1Name | 2-Seat | 3-Disc | 4-Stem | 5-Actuator | ||
| Material | SS | PTFE | SS304 | SS410 | Aluminum Handle | ||
| SIZE | INCH | A | B | C | L | ANS 150B | |
| 40 | 1.5" | 67 | 141 | 32 | 33 | 98.5 | 4-ø16 |
| 50 | 2" | 67 | 141 | 32 | 43 | 120.6 | 4-ø19 |
| 65 | 2.5" | 75 | 151 | 32 | 46 | 139.7 | 4-ø19 |
| 80 | 3" | 95 | 160 | 32 | 46 | 152.4 | 4-ø19 |
| 100 | 4" | 111 | 180 | 32 | 52 | 190.5 | 8-ø19 |
| 125 | 5" | 129 | 193 | 32 | 56 | 215.9 | 8-ø22.4 |
| 150 | 6" | 142 | 207 | 32 | 56 | 241.3 | 8-ø22.4 |
| 200 | 8" | 170 | 240 | 45 | 60 | 298.4 | 8-ø22.4 |
we will contact you in 6 hours as soon as we can.
We are factory.
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
We adhere to strict quality control procedures that begin with product design and carry through to the end of the production process using state-of -the-art quality control equipment.
We are a global stocking valve distributor with a vast inventory of valves for any job.
