Widely used in cold and hot water systems, energy can be effectively used to achieve energy saving and improve heating (cold) efficiency.
Linear flow characteristics, that is, when the pressure difference between the front and back of the valve is unchanged, the flow rate and the opening are generally linear;
With accurate opening indication;
There is an opening locking device, non-management personnel can not arbitrarily change the opening; The meter connection can easily display the pressure difference before and after the valve and the flow through the valve.

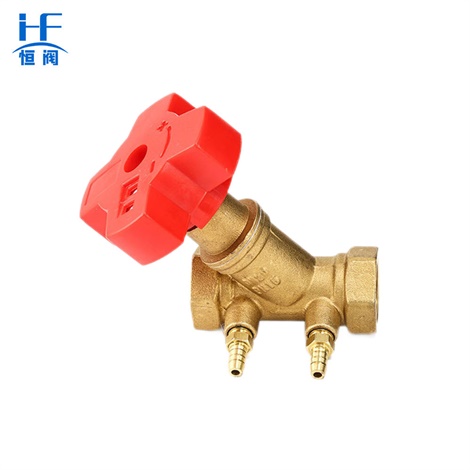

The advanced Y-shape design, with multiple rotation scale adjustment and display opening range, provides the best control capability, which can accurately control the entire circulating water or air conditioning system, so that the entire system can achieve the required flow balance.

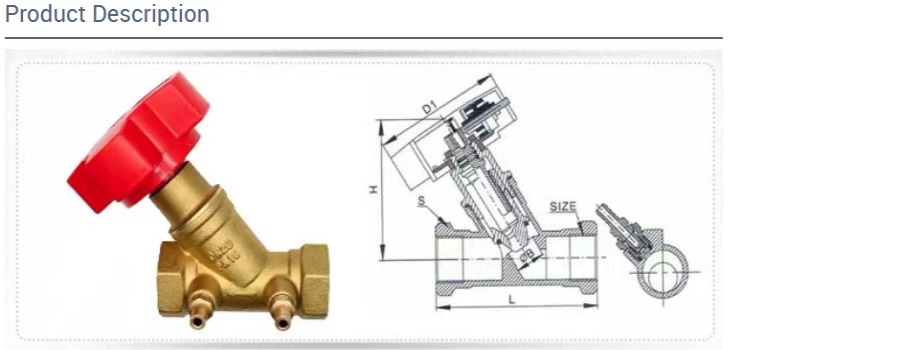

| DN | SIZE | L | H |
| 15 | 1/2" | 75.5 | 92 |
| 20 | 3/4" | 76 | 99 |
| 25 | 1" | 86 | 99 |
| 32 | 1-1/4" | 98 | 99 |
| 40 | 1-1/2" | 118 | 114 |
| 50 | 2" | 132 | 128 |
