Electric power, chemical industry, metallurgy, environmental protection, water treatment, light industry, building materials and other industrial automation systems.

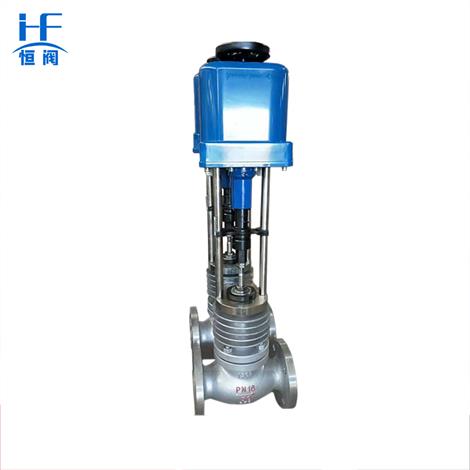

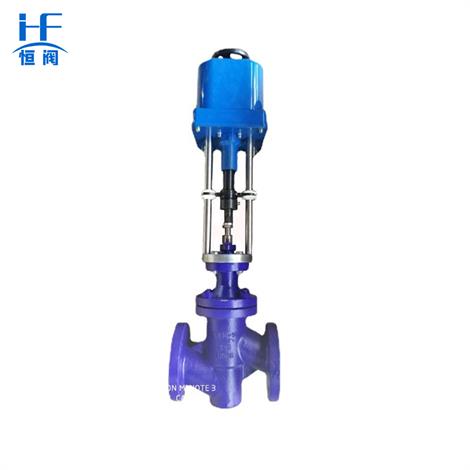

By receiving the signal of the industrial automation control system to drive the valve to change the cross-sectional area between the valve core and the seat to control the flow, temperature, pressure and other process parameters of the pipeline medium. Realize automatic adjustment function. The new electric regulating valve actuator includes feeding function, accepts the unified 4-20mA or 1-5V·DC standard signal, converts the current signal into the corresponding linear displacement, automatically controls the opening of the regulating valve, and achieves continuous adjustment of the process parameters such as pressure, flow rate, temperature and liquid level of the fluid in the pipeline.
It is used to adjust process parameters such as medium flow, pressure, temperature and liquid level in the field of industrial automation process control.

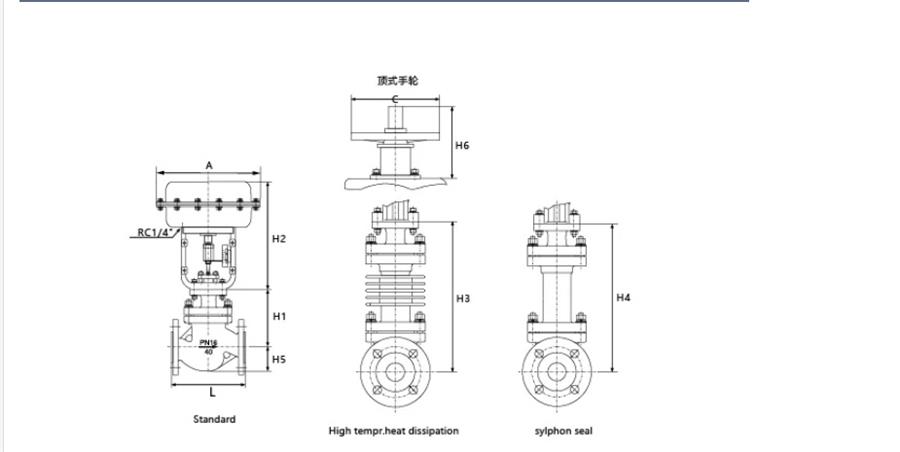

| [DN] | L PN16/40 |
A | H1 | H2 | H3 | H4 | H5 | C | H6 | Weight(kg) | ||||
| PN64 | PN16/40 | PN64 | PN16/40 | PN64 | PN16/40 | PN16/40 | PN64 | |||||||
| 20 | 181.00 | 206.00 | 285.00 | 128.00 | 140.00 | 298.00 | 208.00 | 220.00 | 238.00 | 53.00 | 220 | 180 | 21.00 | 24.00 |
| 25 | 184.00 | 210.00 | 285.00 | 128.00 | 140.00 | 298.00 | 208.00 | 220.00 | 338.00 | 58.00 | 220 | 180 | 22.00 | 25.00 |
| 32 | 220.00 | 251.00 | 285.00 | 152.00 | 160.00 | 298.00 | 224.00 | 240.00 | 402.00 | 68.00 | 220 | 180 | 24.00 | 30.00 |
| 40 | 222.00 | 251.00 | 285.00 | 152.00 | 160.00 | 298.00 | 228.00 | 240.00 | 402.00 | 73.00 | 220 | 180 | 32.00 | 42.00 |
| 50 | 254.00 | 286.00 | 285.00 | 160.00 | 180.00 | 298.00 | 228.00 | 240.00 | 405.00 | 80.00 | 220 | 180 | 38.00 | 52.00 |
| 65 | 276.00 | 311.00 | 360.00 | 205.00 | 210.00 | 380.00 | 334.00 | 350.00 | 627.00 | 90.00 | 270 | 236 | 62.00 | 78.00 |
| 80 | 298.00 | 337.00 | 360.00 | 205.00 | 210.00 | 380.00 | 334.00 | 350.00 | 628.00 | 98.00 | 270 | 236 | 67.00 | 82.00 |
| 100.00 | 352.00 | 394.00 | 360.00 | 208.00 | 220.00 | 380.00 | 342.00 | 360.00 | 635.00 | 108.00 | 270 | 236 | 83.00 | 102.00 |
| 125.00 | 410.00 | 457.00 | 470.00 | 273.00 | 290.00 | 510.00 | 408.00 | 420.00 | 698.00 | 123.00 | 320 | 310 | 132.00 | 170.00 |
| 150.00 | 451.00 | 508.00 | 470.00 | 330.00 | 340.00 | 510.00 | 453.00 | 470.00 | 702.00 | 140.00 | 320 | 310 | 160.00 | 190.00 |
| 200.00 | 600.00 | 650.00 | 470.00 | 364.00 | 370.00 | 510.00 | 482.00 | 500.00 | 728.00 | 168.00 | 320 | 310 | 245.00 | 285.00 |
