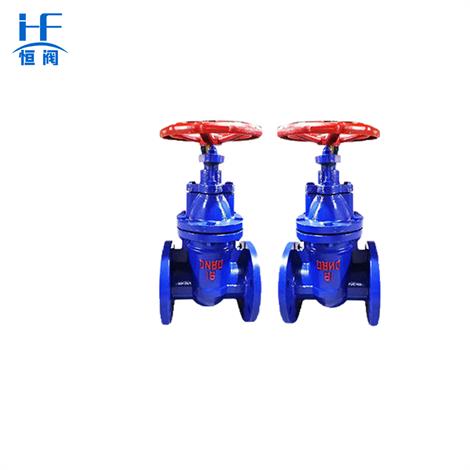

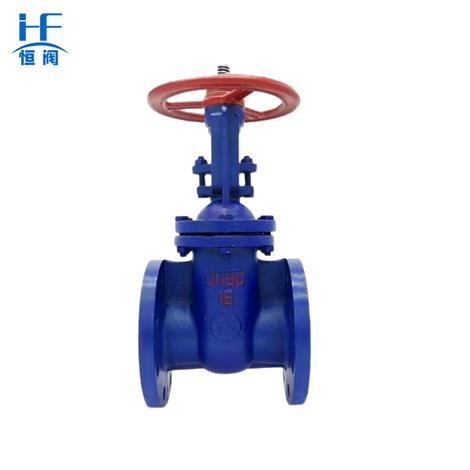

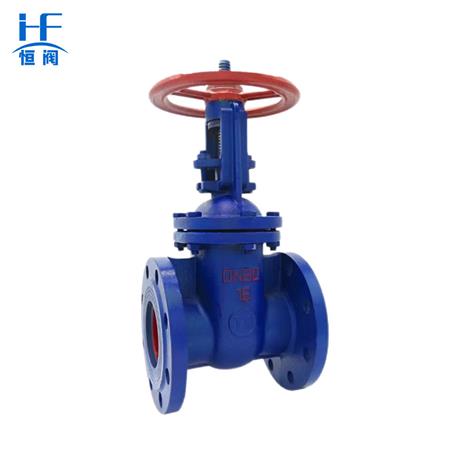

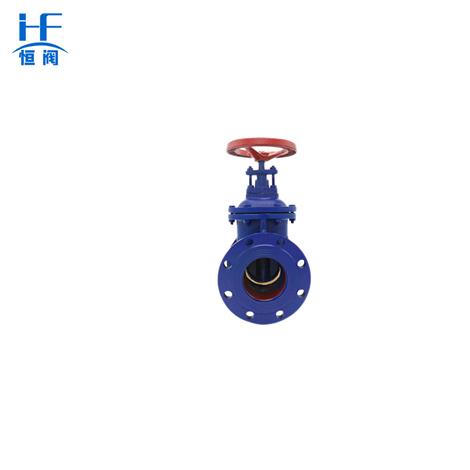

Cast iron protective gate valve

Product Description

Valve material

Grey cast iron,Ductile Iron

Product features

The valve body is thickened, the sealing performance is good, and the operation is convenient

The medium can flow in any direction on both sides, which is convenient for installation

Product thickened material, stable structure, not easy to corrode

Product application

Turn on or turn off the pipelines where the nominal pressure is<1.6MPa and the medium must be steam, water or oil,which can be used in fields of petroleum industry,chemical industry,pharmaceutical industry and power industry

Benefits

Own factory, factory price

14-year valve professional experience

Years of State-owned EnterpriseCooperation

We support OEM ODM

Adequate supply

Professional team and after services

Parameter

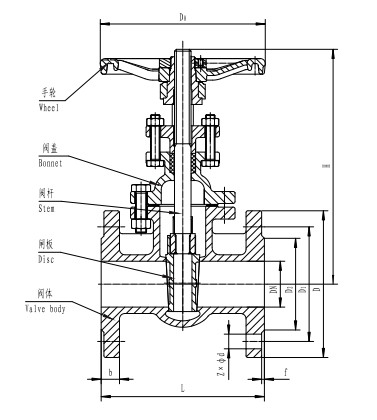

Outine And Connecting Measurement
Model	Nominal Tongjing	Size
Model	mm	L	D	D1	D2	b-f	Z-Фd	(H)	Do
Z41T/W-10	40	165	145	110	85	18-3	4-Ф18	252	135
	50	178	160	125	100	20-3	4-Ф18	295	180
	65	190	180	145	120	20-3	4-Ф18	330	180
	80	203	195	160	135	22-3	4-Ф18	382	200
	100	229	215	180	155	22-3	8-Ф18	437	200
	125	254	245	210	185	24-3	8-Ф18	508	240
	150	280	280	240	210	24-3	8-Ф23	580	240
	200	330	335	295	265	26-3	8-Ф23	760	320
	250	380	390	350	320	28-3	12-Ф23	875	320
	300	420	440	400	368	28-4	12-Ф23	1040	400
	350	450	500	460	428	30-4	16-Ф23	1195	400
	400	480	565	515	482	32-4	16-Ф25	1367	500
	450	510	615	565	532	32-4	20-Ф25	1498	500
	500	540	670	620	585	34-4	20-Ф25	1710	500
	600	600	780	725	685	36-5	20-Ф30	2129	500
Z41T/W-16Q	40	165	145	110	85	18-3	4-Ф18	252	135
	50	178	160	125	100	20-3	4-Ф18	295	180
	65	190	180	145	120	20-3	4-Ф18	330	180
	80	203	195	160	135	22-3	8-Ф18	382	200
	100	229	215	180	155	22-3	8-Ф18	437	200
	125	254	245	210	185	24-3	8-Ф18	508	240
	150	280	280	240	210	24-3	8-Ф23	580	240
	200	330	335	295	265	26-3	12-Ф23	760	320
	250	380	405	355	320	27-3	12-Ф25	875	320
	300	420	460	410	375	28-4	12-Ф25	1040	400

Project Case

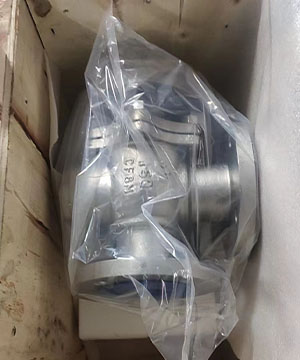

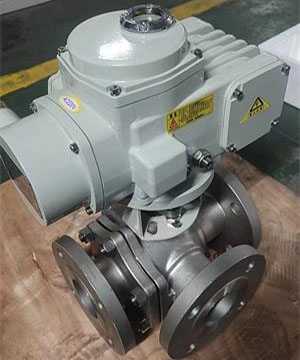

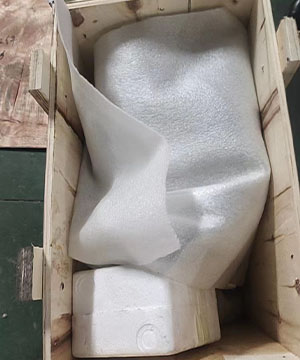

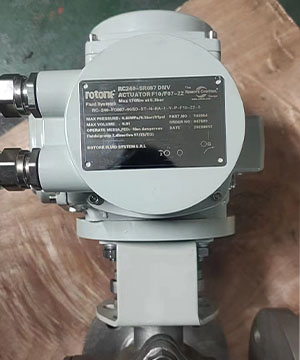

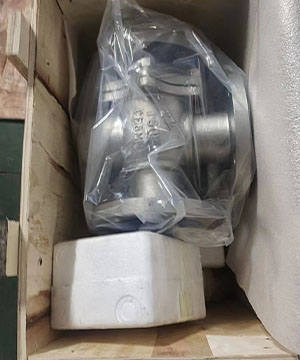

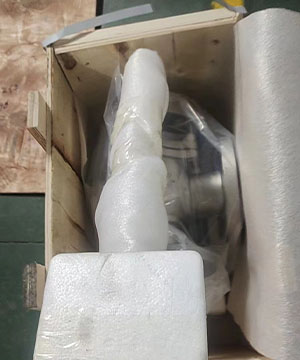

Packing and Shipping

FAQ

How long will you give me the reply?

we will contact you in 6 hours as soon as we can.

Are you trading company or manufacturer?

We are factory.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

What are your quality control procedures?

We adhere to strict quality control procedures that begin with product design and carry through to the end of the production process using state-of -the-art quality control equipment.

Get A Free Quote

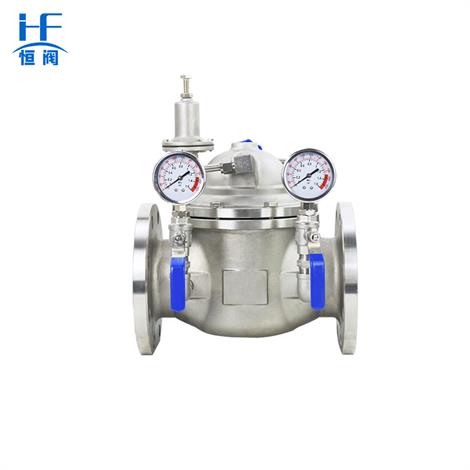

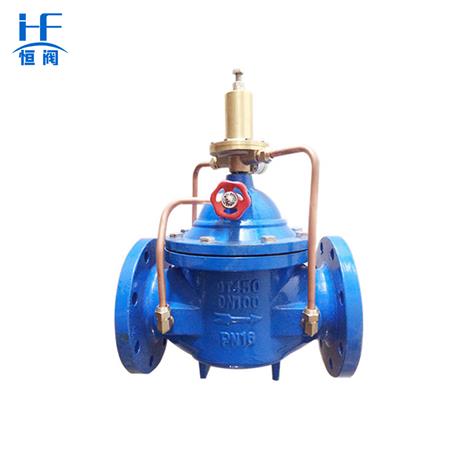

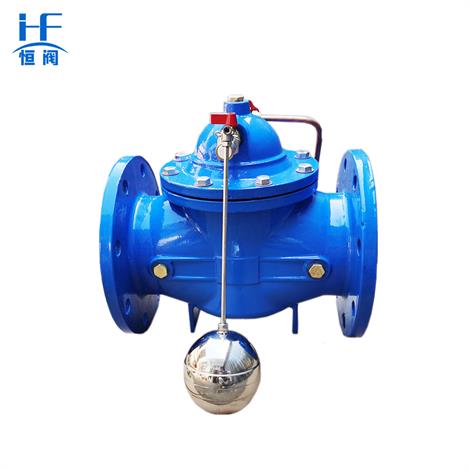

Related Products
