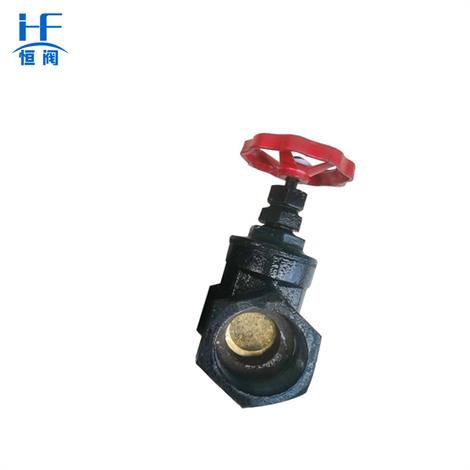

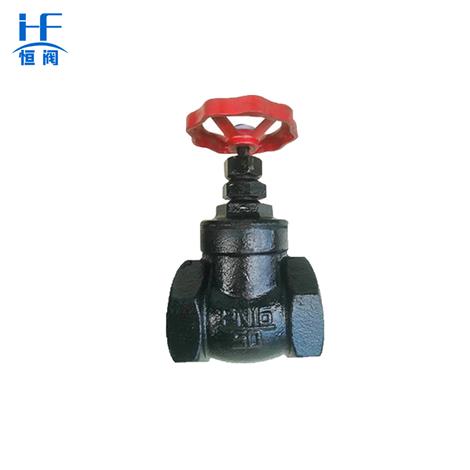

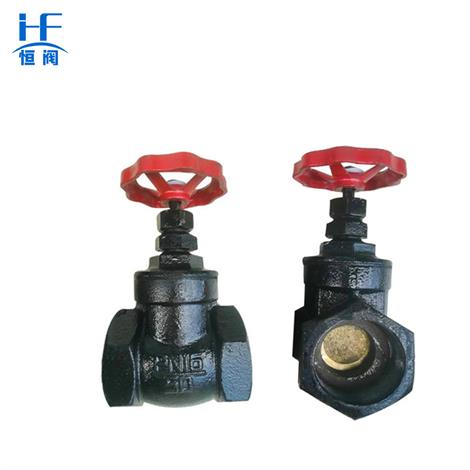

The opening and closing part of the threaded gate valve is a plug-shaped disc, the sealing surface is flat or conical, and the disc moves linearly along the center line of the fluid.
1.Lifting lever type (valve stem lifts, hand wheel does not lift)
2.Lifting and rotating rod type (the handwheel and the valve stem rotate together to lift, and the nut is set on the valve body)
The structure is simple, and the manufacture and maintenance are relatively convenient.
The working stroke is small and the opening and closing time is short.
Good sealing performance, small friction between sealing surfaces, and long service life.

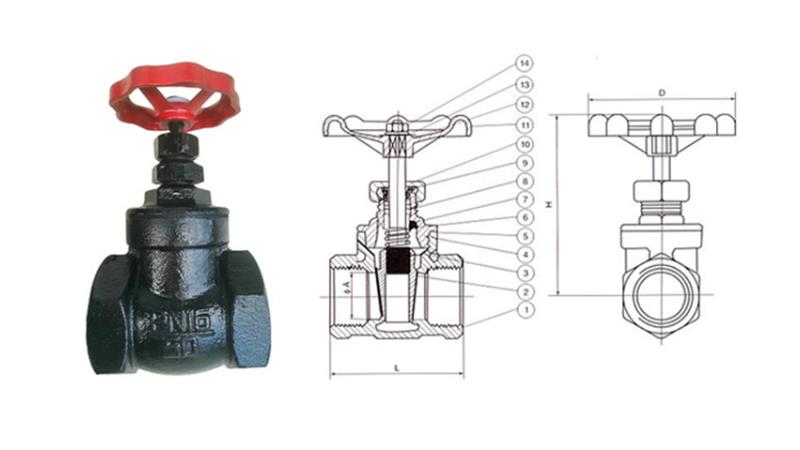

| DN | L | L1 | S | H | Do |
| 15 | 65 | 12 | 27 | 105 | 65 |
| 20 | 70 | 14 | 34 | 120 | 65 |
| 25 | 80 | 15 | 42 | 1 50 | 80 |
| 32 | 85 | 16 | 55 | 1 55 | 80 |
| 40 | 95 | 20 | 60 | 1 70 | 100 |
| 50 | 110 | 22 | 80 | 210 | 100 |
| 65 | 120 | 25 | 95 | 240 | 1 35 |
| 80 | 145 | 30 | 105 | 275 | 1 40 |
| 100 | 1 55 | 30 | 1 35 | 300 | 1 60 |
we will contact you in 6 hours as soon as we can.
We are factory.
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
We adhere to strict quality control procedures that begin with product design and carry through to the end of the production process using state-of -the-art quality control equipment.
We are a global stocking valve distributor with a vast inventory of valves for any job.
