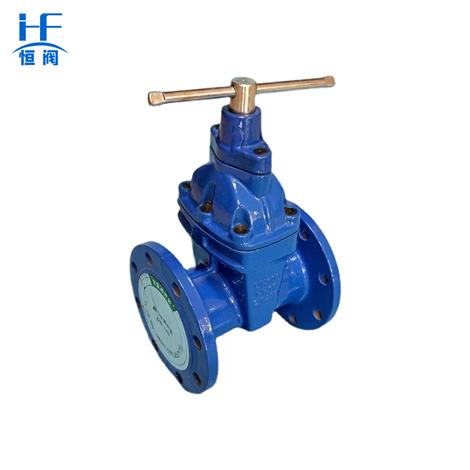

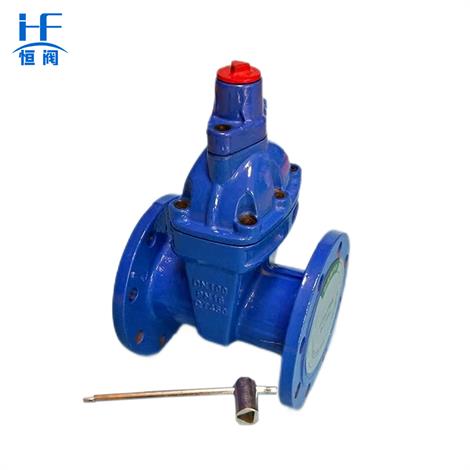

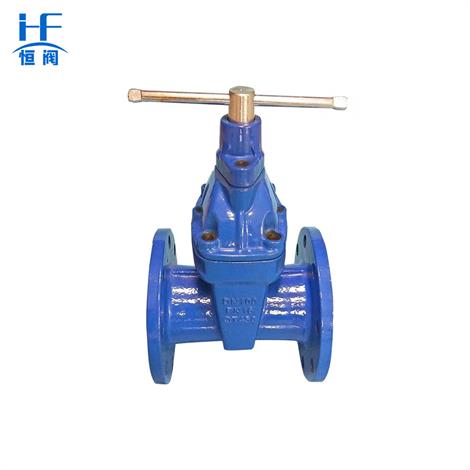

The encryption soft seal magnetic lock gate valve, also known as an anti-theft valve, has a gate for opening and closing that moves perpendicular to the direction of fluid flow. It can only be fully opened or fully closed and should not be used for regulation or throttling.
1.Soft seal magnetic lock gate valve body material is made of ductile iron, very light weight, easy to install gate valve;
2.The traditional gate valve is prone to blockages and leaks. However, the encryption soft seal magnetic lock gate valve has a flat design similar to the pipe, with a flat base that prevents impurities and silt from causing obstructions, ensuring unimpeded flow of the medium.
3.The valve body has an internal and external rubber coating to provide a tight seal and prevent leakage when in service.
4.The product's simple structure and short length make it suitable for a wide range of applications due to its high-quality manufacturing process.
5.As the valve body's internal channel is straight, the medium flows with minimal resistance.
The gate valve is an industrial valve with good anti-theft performance and is widely used in all walks of life.

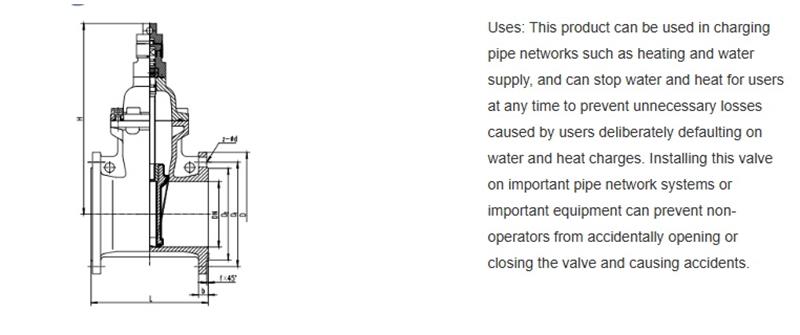

| Outline And Connecting Measurement | ||||||||
| Model | Nominal Tongjing | SIZE | ||||||
| (A)CXZ45X-16Q | mm | L | D 10 16 25 |
D1 10 16 25 |
D2 10 16 25 |
b f | Z-Φd 10 16 25 |
H |
| 40 | 165 | 150 | 110 | 84 | 19 3 | 4-Φ19 | 240 | |
| 50 | 178 | 165 | 125 | 99 | 19 3 | 4-Φ19 | 260 | |
| 65 | 190 | 185 | 145 | 118 | 19 3 | 4-Φ19 8-Φ19 | 285 | |
| 80 | 203 | 200 | 160 | 132 | 19 3 | 4-Φ19 8-Φ19 | 325 | |
| 100 | 229 | 220 235 | 180 190 | 156 | 21 3 | 8-Φ19 8-Φ23 | 345 | |
| 125 | 254 | 250 270 | 210 220 | 184 | 22 3 | 8-Φ19 8-Φ28 | 398 | |
| 150 | 267 | 285 300 | 240 250 | 211 | 22 3 | 8-Φ23 8-Φ28 | 438 | |
| 200 | 292 | 340 360 | 295 310 | 266 274 | 23 3 | 8-Φ23 12-Φ23 12-Φ28 | 546 | |
| 250 | 330 | 395 405 425 | 350 355 370 | 319 330 | 26 3 | 12-Φ23 12-Φ28 12-Φ31 | 661 | |
| 300 | 356 | 445 460 485 | 400 410 430 | 370 389 | 28.5 4 | 12-Φ23 12-Φ28 16-Φ31 | 755 | |
