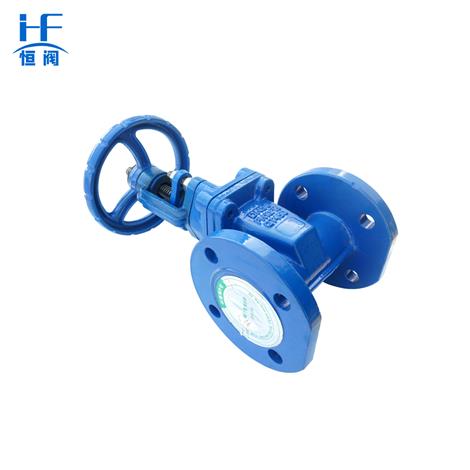

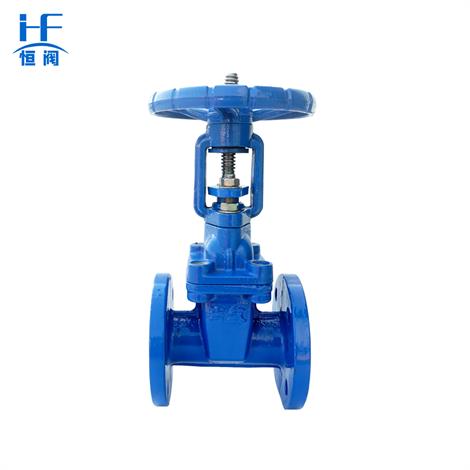

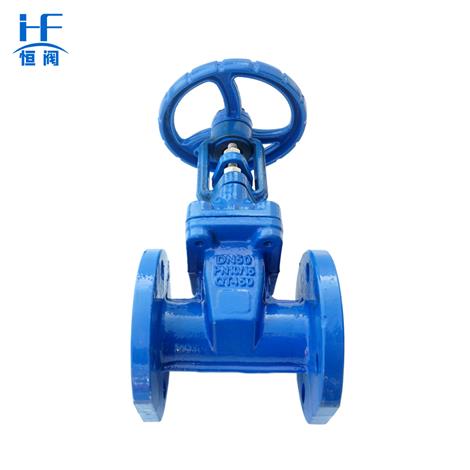

Soft seal gate valve is an industrial valve, the opening and closing part of the soft seal gate valve is a gate plate, the direction of motion of the gate plate is perpendicular to the direction of the fluid, the gate valve can only be fully opened and fully closed, can not be adjusted and throttled.
It is widely used in various transportation pipelines, especially in chemical, oil, natural gas, steel, electric power and other industrial fields, as a key component of fluid control devices.
1.Integral encapsulation: The soft seal gate valve adopts integral encapsulation, which has good covering performance and accurate geometry to ensure reliable sealing and life.
2. Light weight: The valve body is made of ductile iron, light weight and easy installation.
3. Flat bottom seat: The bottom adopts the same flat bottom seat design as the water pipe, does not produce debris deposition, sealing is more reliable.
4. Corrosion resistance: The inner chamber of the gate valve is coated with non-toxic epoxy resin to prevent corrosion and rust, which can not only be used for raw drinking, but also for sewage systems.
| Model | SIZE | ||||||||
| mm | L | D | D1 | D2 | b | f | z-фd | ф1 | |
| Z45X/Z41-10Q/16Q | 50 | 178±1.5 | 165 | 125 | 99 | 19 | 3 | 4-ф19 | 200 |
| 65 | 190±2 | 185 | 145 | 118 | 19 | 3 | 4-ф19 | 200 | |
| 80 | 203±2 | 200 | 160 | 132 | 19 | 3 | 8-ф19 | 240 | |
| 100 | 229±2 | 220 | 180 | 156 | 21 | 3 | 8-ф19 | 260 | |
| 125 | 254±2 | 250 | 210 | 184 | 22 | 3 | 8-ф19 | 280 | |
| 150 | 267±2 | 285 | 240 | 211 | 22 | 3 | 8-ф23 | 320 | |
| 200 | 292±2 | 340 | 295 | 266 | 23 | 3 | 8-ф23/12-ф23 | 320 | |
| 250 | 330±3 | 405 | 350/355 | 319 | 26 | 3 | 12-ф23/12-ф28 | 360 | |
| 300 | 356±3 | 460 | 400/410 | 370 | 28.5 | 4 | 12-ф23/12-ф28 | 400 | |
