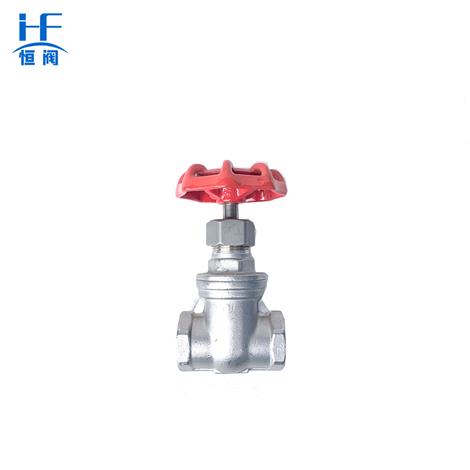

The opening and closing part of the stainless steel wire gate valve is a plug shaped valve disc, the sealing surface is flat or cone, and the valve disc moves in a straight line along the center line of the fluid. The movement of the valve stem has a lifting rod type (the valve stem is lifted, the handwheel is not lifted), and a lifting rotary rod type (the handwheel is rotated with the valve stem, and the nut is located on the valve body).
Relying on the pressure of the valve bar, the sealing surface of the valve disc is closely fitted with the sealing surface of the valve seat to prevent the flow of medium.
The structure is simple, and the manufacturing and maintenance are more convenient.
The working stroke is small, and the opening and closing time is short.
Good sealing, small friction force between sealing surfaces, long life.

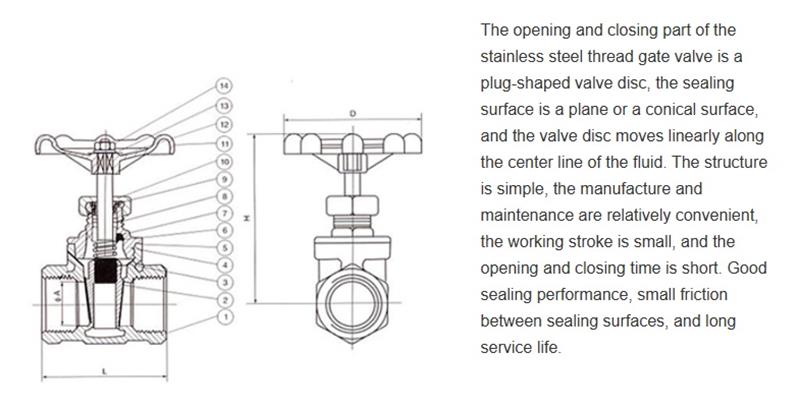

| DN | L | L1 | S | H | Do |
| 15 | 65 | 12 | 27 | 105 | 65 |
| 20 | 70 | 14 | 34 | 120 | 65 |
| 25 | 80 | 15 | 42 | 1 50 | 80 |
| 32 | 85 | 16 | 55 | 1 55 | 80 |
| 40 | 95 | 20 | 60 | 1 70 | 100 |
| 50 | 110 | 22 | 80 | 210 | 100 |
| 65 | 120 | 25 | 95 | 240 | 1 35 |
| 80 | 145 | 30 | 105 | 275 | 1 40 |
| 100 | 1 55 | 30 | 1 35 | 300 | 1 60 |
we will contact you in 6 hours as soon as we can.
We are factory.
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
We adhere to strict quality control procedures that begin with product design and carry through to the end of the production process using state-of -the-art quality control equipment.
We are a global stocking valve distributor with a vast inventory of valves for any job.
