Depending on the stem pressure, the disc sealing surface is closely fitted with the seat sealing surface to prevent the flow of media.
The valve is widely used in food, medicine, petroleum, chemical, natural gas, steel, environmental protection, paper and other transmission pipelines to do media cut off or circulation.
1, the product structure is reasonable, reliable sealing, excellent performance, beautiful shape;
2, sealing surface surfacing Co based cemented carbide, wear resistance, corrosion resistance, good friction performance, long service life;
3, the valve stem tempering and surface nitriding treatment, has good anti-corrosion and anti-friction performance;
4, double seal, more reliable performance, zero leakage;
5, valve stem lifting position indication, more intuitive;

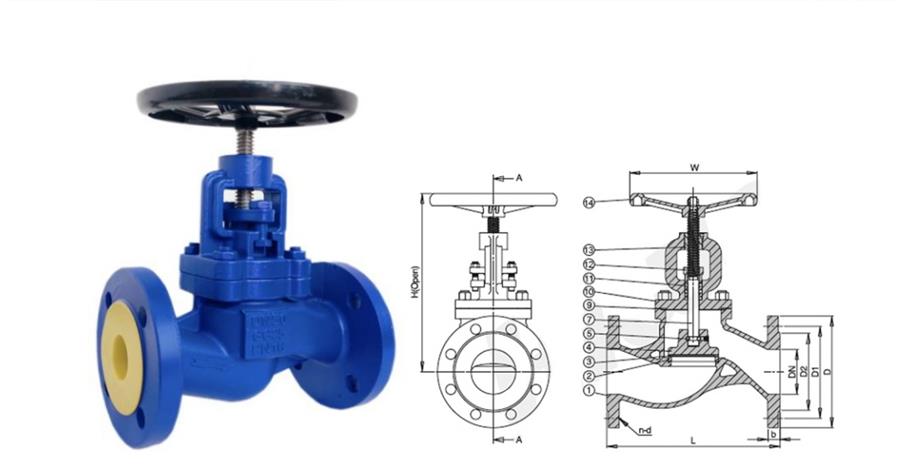

| DIMENTIONS(mm) | |||||||||
| Size | L | D | D1 | D2 | b | n-d | H(open) | W | W.T( kg) |
| DN15 | 130 | 95 | 65 | 45 | 14 | 4-14 | 200 | 120 | 3.4 |
| DN20 | 150 | 105 | 75 | 58 | 16 | 4-14 | 220 | 120 | 4.7 |
| DN25 | 160 | 115 | 85 | 68 | 16 | 4-14 | 225 | 120 | 5.1 |
| DN32 | 180 | 140 | 100 | 78 | 18 | 4-18 | 250 | 120 | 7.6 |
| DN40 | 200 | 150 | 110 | 88 | 18 | 4-18 | 270 | 160 | 9.5 |
| DN50 | 230 | 165 | 125 | 102 | 20 | 4-18 | 290 | 200 | 13.7 |
| DN65 | 290 | 185 | 145 | 122 | 20 | 4-18 | 320 | 200 | 18.5 |
| DN80 | 310 | 200 | 160 | 138 | 22 | 8-18 | 365 | 200 | 22.1 |
| DN100 | 350 | 220 | 180 | 158 | 24 | 8-18 | 410 | 240 | 34 |
| DN125 | 400 | 250 | 210 | 188 | 26 | 8-18 | 460 | 240 | 47.8 |
| DN150 | 480 | 285 | 240 | 212 | 26 | 8-22 | 525 | 280 | 65.9 |
| DN200 | 600 | 340 | 295 | 268 | 30 | 12-22 | 685 | 360 | 128.8 |
| DN250 | 730 | 405 | 355 | 320 | 32 | 12-26 | 830 | 400 | 196 |
| DN300 | 850 | 460 | 410 | 378 | 32 | 12-26 | 925 | 450 | 245 |
