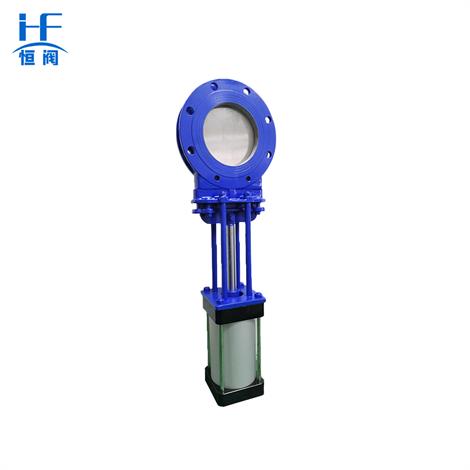

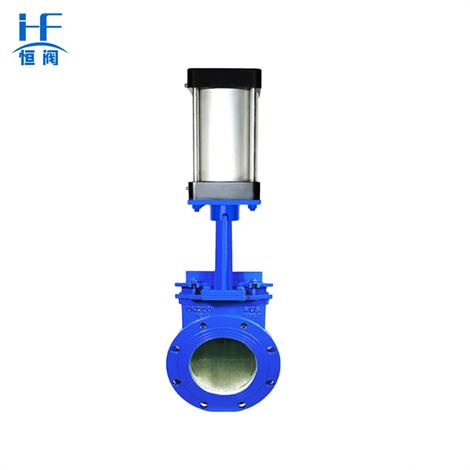

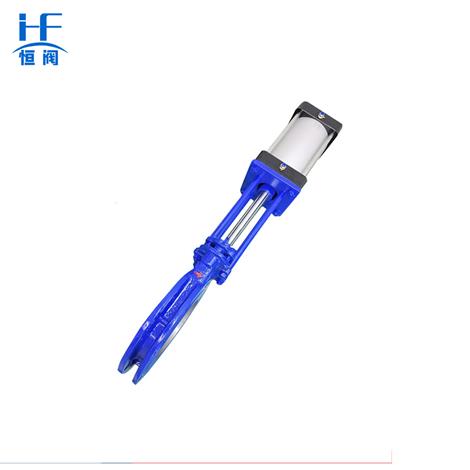

Pneumatic knife gate valve is a valve that uses a pneumatic actuator to control the valve, so as to realize the opening and closing of the valve. It can be divided into two parts, the upper part is the pneumatic actuator, the lower part is the valve.
The valve has developed from a general industrial pipeline to a professional pipeline system such as food, health and medicine.
Ultra-thin knife gate valve with its small size, small flow resistance, light weight, easy to install, easy to disassemble and other advantages to completely solve the general gate valve, flat gate valve, ball valve, globe valve, regulating valve, butterfly valve and other valves of large flow sun, large weight, difficult installation, occupy a large area and other difficult problems. With the advent of tool gates, a large number of general purpose cut-off valves and regulating valves have been replaced by them.

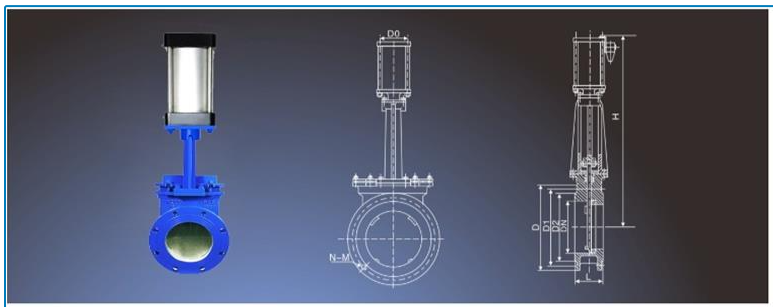

| PN(MPa) | DN(mm) | L | D | D1 | D2 | H | N-M | D0 |
| PZ673X-6/10/16 PZ673F-6/10/16 PZ673H-6/10/16 PZ673Y-6/10/16 | ||||||||
| 1.0 | 50 | 48 | 165 | 125 | 102 | 335 | 4-M16 | 180 |
| 65 | 50 | 185 | 145 | 122 | 363 | 8-M16 | 180 | |
| 80 | 51 | 200 | 160 | 138 | 395 | 8-M16 | 220 | |
| 100 | 51 | 220 | 180 | 158 | 465 | 8-M16 | 220 | |
| 125 | 57 | 250 | 210 | 188 | 530 | 8-M16 | 230 | |
| 150 | 57 | 285 | 240 | 212 | 630 | 8-M20 | 280 | |
| 200 | 70 | 340 | 295 | 268 | 750 | 8-M20 | 360 | |
| 250 | 70 | 395 | 350 | 320 | 900 | 12-M20 | 360 | |
| 300 | 76 | 445 | 400 | 370 | 1125 | 12-M20 | 400 | |
| 350 | 76 | 505 | 460 | 430 | 1260 | 16-M20 | 400 | |
| 400 | 89 | 565 | 515 | 482 | 1520 | 16-M24 | 400 | |
| 450 | 89 | 615 | 565 | 532 | 1600 | 20-M24 | 530 | |
| 500 | 114 | 670 | 620 | 585 | 1820 | 20-M24 | 530 | |
| 600 | 114 | 780 | 725 | 685 | 2300 | 20-M27 | 600 | |
we will contact you in 6 hours as soon as we can.
We are factory.
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
We adhere to strict quality control procedures that begin with product design and carry through to the end of the production process using state-of -the-art quality control equipment.
We are a global stocking valve distributor with a vast inventory of valves for any job.
