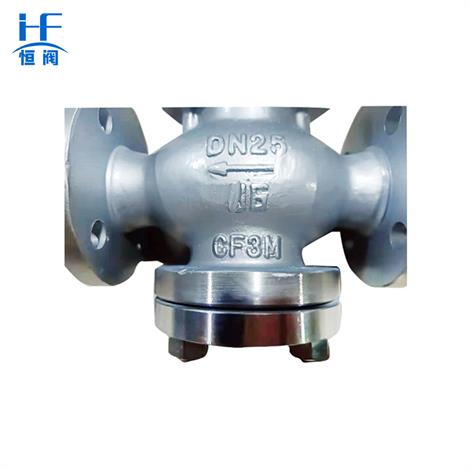

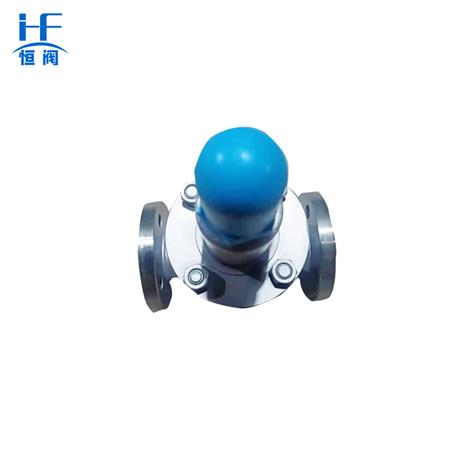

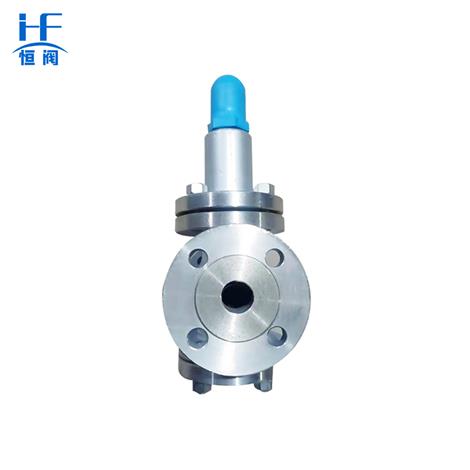

Y43 steam pressure reducing valve

Product Description

Application

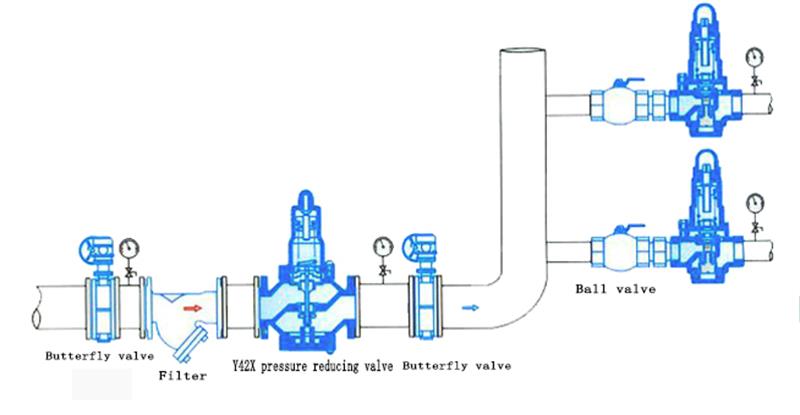

This valve is suitable for steam pipeline with working temperature ≤425°C, through the throttling of opening and closing parts, the inlet pressure will be reduced to a certain required outlet pressure, and with the help of the energy of the medium itself, the pressure after the valve automatically meets the specified requirements. Adapt to the needs of working conditions

Structure

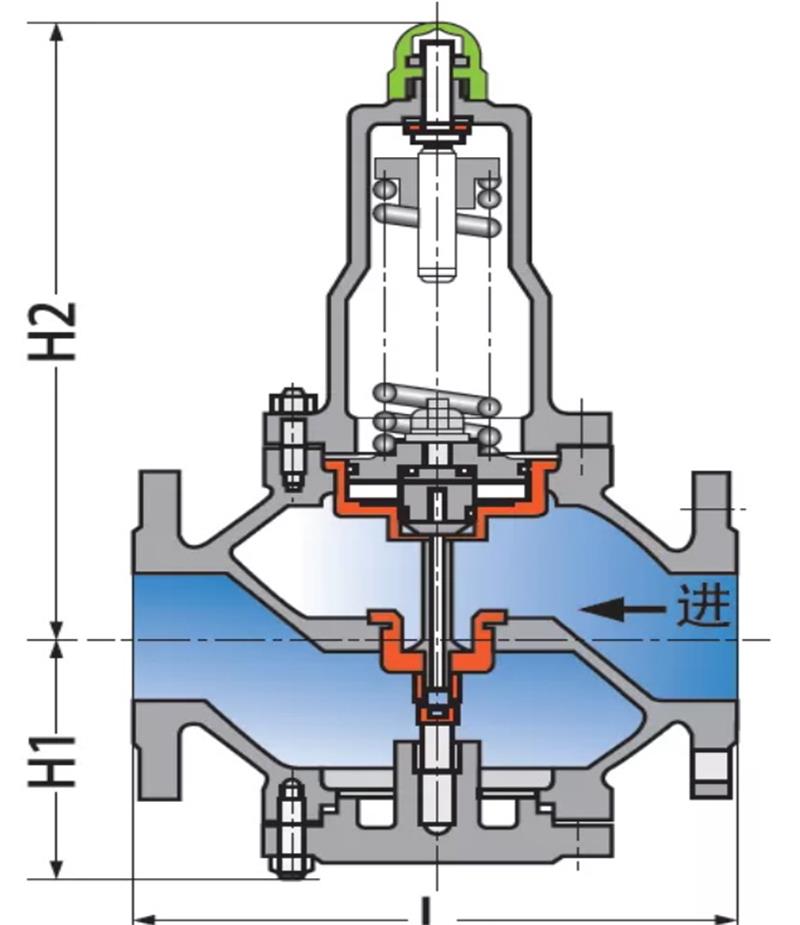

This valve is composed of valve body, upper cover, piston, spring, main valve, pilot valve, diaphragm and other components. The lower part of the valve body has a lower cover, a main valve spring, and a main valve disc. The main spring supports the main valve disc, so that the main valve disc and the main valve seat in the body are in a sealed state. The upper part of the valve body has pistons, piston rings, cylinder liners, etc

Work principle

The piston is pressed by the medium and pushes the main valve disc by the cylinder liner guide to open the valve. The upper cover contains a pilot valve spring, a pilot valve disc, a pilot valve seat, a diaphragm, etc. The pilot valve spring supports the pilot valve disc, so that the pilot valve disc and the pilot valve seat are in a sealed state. There is an adjustment spring in the cap and an adjustment bolt to facilitate the adjustment of the required working pressure.

Benefits

Own factory, factory price

14-year valve professional experience

Years of State-owned EnterpriseCooperation

We support OEM ODM

Adequate supply

Professional team and after services

Parameter

◆Main Boundary Connection Dimensions Unit: mm
PN(MPa)	DN	L	H1	H2	PN(MPa)	DN	L	H1	H2
1.6MPa	20	160	89	312	2.5MPa	250	600	270	545
	25	180	101	315		300	800	335	575
	32	200	107	320		350	850	390	650
	40	220	113	325		400	900	430	710
	50	250	120	335	4.0MPa	25	200	101	315
	65	260	125	340		32	220	107	320
	80	310	140	360		40	240	113	325
	100	350	150	390		50	270	120	335
	125	400	190	415		65	280	140	365
	150	450	205	440		80	330	150	385
	200	500	220	475		100	380	150	385
	250	600	270	545		125	450	190	425
	300	800	335	575		150	500	210	445
	350	850	390	650		200	560	245	485
	400	900	430	705	6.3MPa (6.4)MPa	25	200	110	370
2.5MPa	25	200	101	315		32	220	125	380
	32	200	107	320		40	240	130	395
	40	220	113	325		50	270	135	405
	50	250	120	335		65	300	145	410
	65	260	125	340		80	330	170	445
	80	310	140	360		100	380	175	455
	100	350	150	390		125	450	245	504
	125	400	190	425		150	500	280	555
	150	450	210	445		200	560	310	581
	200	500	245	485		－	－	－	－
