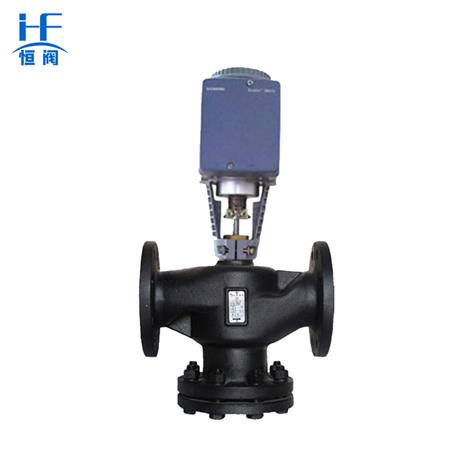

Valve body, valve cover, packing gland, valve stem, valve disc, sealing ring, indicator, valve stem nut, nut sleeve
Electric power, chemical industry, metallurgy, environmental protection, water treatment, light industry, building materials and other industrial automation systems.
By receiving the signal of the industrial automation control system to drive the valve to change the cross-sectional area between the valve core and the seat to control the flow, temperature, pressure and other process parameters of the pipeline medium. Realize automatic adjustment function.

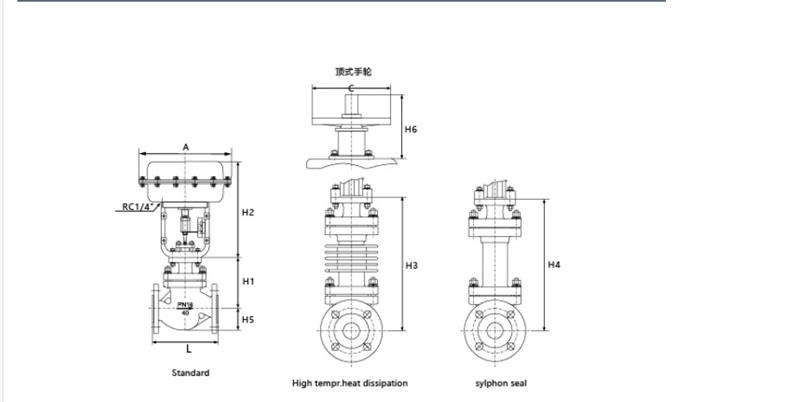

| [DN] | L PN16/40 |
A | H1 | H2 | H3 | H4 | H5 | C | H6 | Weight(kg) | ||||
| PN64 | PN16/40 | PN64 | PN16/40 | PN64 | PN16/40 | PN16/40 | PN64 | |||||||
| 20 | 181.00 | 206.00 | 285.00 | 128.00 | 140.00 | 298.00 | 208.00 | 220.00 | 238.00 | 53.00 | 220 | 180 | 21.00 | 24.00 |
| 25 | 184.00 | 210.00 | 285.00 | 128.00 | 140.00 | 298.00 | 208.00 | 220.00 | 338.00 | 58.00 | 220 | 180 | 22.00 | 25.00 |
| 32 | 220.00 | 251.00 | 285.00 | 152.00 | 160.00 | 298.00 | 224.00 | 240.00 | 402.00 | 68.00 | 220 | 180 | 24.00 | 30.00 |
| 40 | 222.00 | 251.00 | 285.00 | 152.00 | 160.00 | 298.00 | 228.00 | 240.00 | 402.00 | 73.00 | 220 | 180 | 32.00 | 42.00 |
| 50 | 254.00 | 286.00 | 285.00 | 160.00 | 180.00 | 298.00 | 228.00 | 240.00 | 405.00 | 80.00 | 220 | 180 | 38.00 | 52.00 |
| 65 | 276.00 | 311.00 | 360.00 | 205.00 | 210.00 | 380.00 | 334.00 | 350.00 | 627.00 | 90.00 | 270 | 236 | 62.00 | 78.00 |
| 80 | 298.00 | 337.00 | 360.00 | 205.00 | 210.00 | 380.00 | 334.00 | 350.00 | 628.00 | 98.00 | 270 | 236 | 67.00 | 82.00 |
| 100.00 | 352.00 | 394.00 | 360.00 | 208.00 | 220.00 | 380.00 | 342.00 | 360.00 | 635.00 | 108.00 | 270 | 236 | 83.00 | 102.00 |
| 125.00 | 410.00 | 457.00 | 470.00 | 273.00 | 290.00 | 510.00 | 408.00 | 420.00 | 698.00 | 123.00 | 320 | 310 | 132.00 | 170.00 |
| 150.00 | 451.00 | 508.00 | 470.00 | 330.00 | 340.00 | 510.00 | 453.00 | 470.00 | 702.00 | 140.00 | 320 | 310 | 160.00 | 190.00 |
| 200.00 | 600.00 | 650.00 | 470.00 | 364.00 | 370.00 | 510.00 | 482.00 | 500.00 | 728.00 | 168.00 | 320 | 310 | 245.00 | 285.00 |
