It is suitable for the installation and use of pumps, drainage pipes, water towers, water meters and valves, and plays a regulating role in the temperature difference expansion of pipelines; Widely used in metallurgy, electric power, chemical industry, water supply and drainage and sewage treatment and other industries.

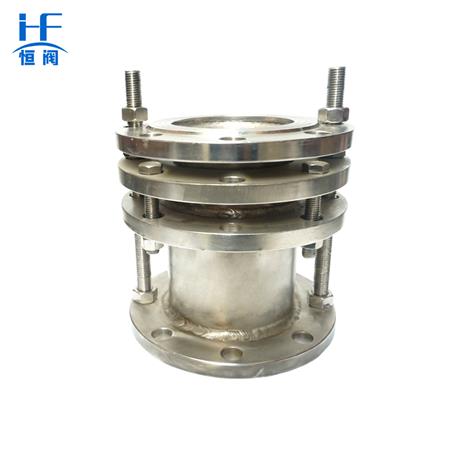

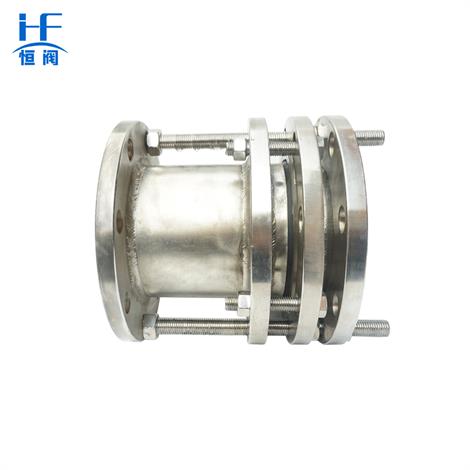

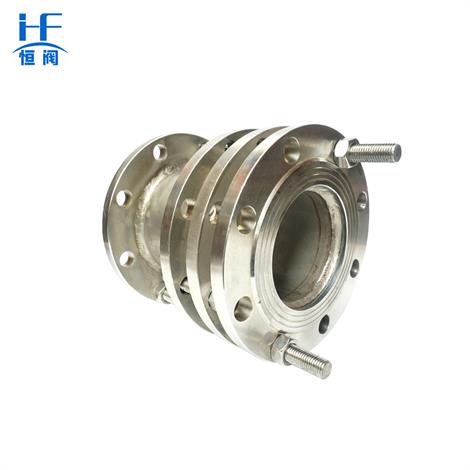

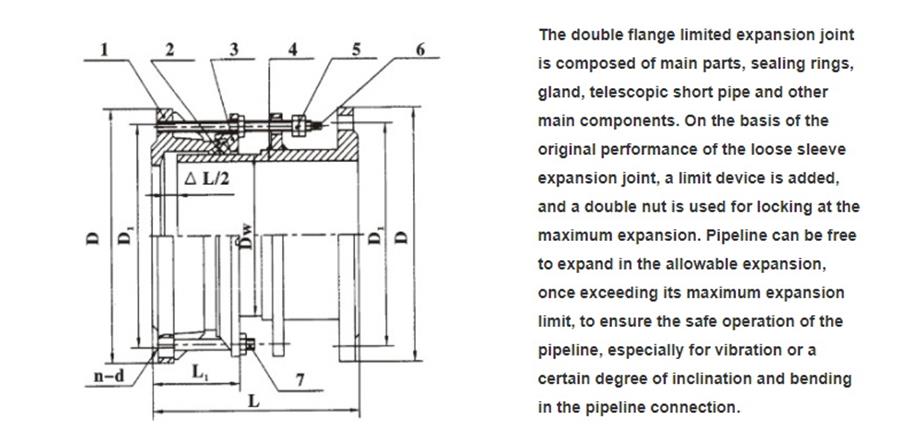

The limit expansion joint is an improved version of the loose sleeve expansion joint, which is secured with double nuts when it reaches its maximum expansion. This allows the pipeline to expand within a safe range and acts as a limit when it exceeds its maximum capacity, ensuring the pipeline's safe operation. It is particularly suitable for vibrating or inclined pipelines, as well as turning connections.
Q235 carbon steel, stainless steel, cast steel, ductile iron
| DN Naminal diameter |
Excernal diameter of pipe | External dimension | Compenation length |
langeconnection size | ||||||
| 0.6Mpa | 1.0Mpa | |||||||||
| L | L1 | D | D1 | n-do | D | D1 | n-do | |||
| 65 | 76 | 340 | 105 | 50 | 160 | 130 | 4- φ14 | 185 | 145 | 4- φ18 |
| 80 | 89 | 190 | 150 | 4- φ18 | 200 | 160 | 8- φ18 | |||
| 100 | 108 | 210 | 170 | 220 | 180 | |||||
| 100 | 114 | 210 | 170 | 220 | 180 | |||||
| 125 | 133 | 340 | 105 | 50 | 240 | 200 | 8- φ18 | 250 | 210 | |
| 125 | 140 | 240 | 200 | 250 | 210 | |||||
| 150 | 159 | 265 | 225 | 285 | 240 | 8- φ22 | ||||
| 150 | 168 | 265 | 225 | 285 | 240 | |||||
| 200 | 219 | 320 | 280 | 340 | 295 | |||||
| 250 | 273 | 375 | 335 | 12- φ18 | 395 | 350 | 12- φ22 | |||
| 300 | 325 | 370 | 130 | 65 | 440 | 395 | 12- φ22 | 445 | 400 | |
| 350 | 377 | 490 | 445 | 505 | 460 | 16- φ22 | ||||
| 400 | 426 | 540 | 495 | 16- φ22 | 565 | 515 | 16- φ26 | |||
| 450 | 480 | 595 | 550 | 615 | 565 | 20- φ26 | ||||
| 500 | 530 | 645 | 600 | 20- φ22 | 670 | 620 | 20- φ26 | |||
| 600 | 630 | 755 | 705 | 20- φ26 | 780 | 725 | 20- φ30 | |||
| 700 | 720 | 860 | 810 | 24- φ26 | 895 | 840 | 24- φ30 | |||
| 800 | 820 | 600 | 220 | 130 | 975 | 920 | 24- φ30 | 1015 | 950 | 24- φ33 |
| 900 | 920 | 1075 | 1020 | 1115 | 1050 | 28- φ33 | ||||
| 1000 | 1020 | 1175 | 1120 | 28- φ30 | 1260 | 1160 | 28- φ36 | |||
| 1200 | 1220 | 1405 | 1340 | 32-b33 | 1455 | 1380 | 32- φ40 | |||
| 1400 | 1420 | 640 | 1630 | 1560 | 36- φ36 | 1675 | 1590 | 36- φ42 | ||
| 1500 | 1520 | 1730 | 1660 | |||||||
| 1600 | 1620 | 1830 | 1760 | 40- φ36 | 1915 | 1820 | 40- φ48 | |||
| 1800 | 1820 | 2045 | 1970 | 44- φ40 | 2115 | 2020 | 44- φ48 | |||
| 2000 | 2020 | 2265 | 2180 | 48-642 | 2325 | 2230 | 48- φ48 | |||
| 2200 | 2220 | 2475 | 2390 | 52- φ42 | 2550 | 2440 | 52- φ56 | |||
| 2400 | 2420 | 2685 | 2600 | 56- φ42 | 2760 | 2650 | 56- φ56 | |||
| 2600 | 2620 | 710 | 240 | 140 | 2905 | 2810 | 60- φ48 | 2960 | 2850 | 60- φ56 |
| 2800 | 2820 | 3115 | 3020 | 64- φ48 | 3180 | 3070 | 64- φ56 | |||
| 3000 | 3020 | 3315 | 3220 | 68- φ48 | 3405 | 3290 | 68- φ60 | |||
| 3200 | 3220 | 3525 | 3430 | 72- φ48 | ||||||
| 3400 | 3420 | 3735 | 3640 | 76- φ48 | ||||||
| 3600 | 3620 | 3970 | 3860 | 80-b56 | ||||||
