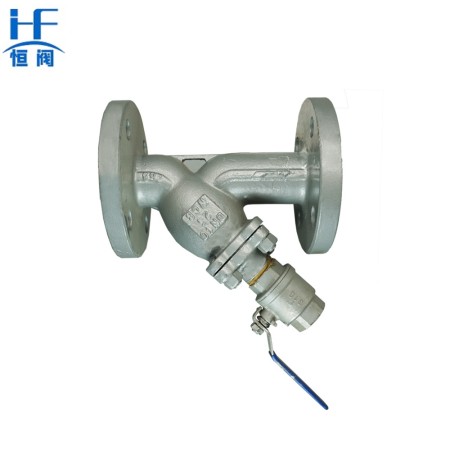

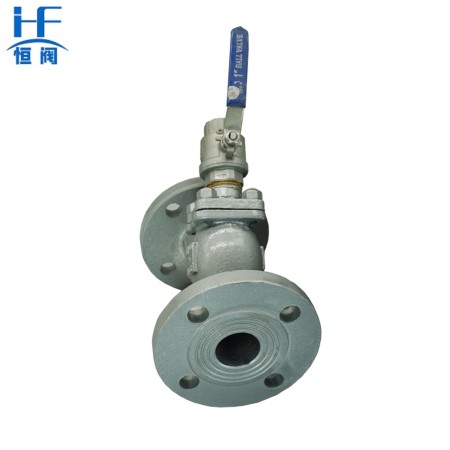

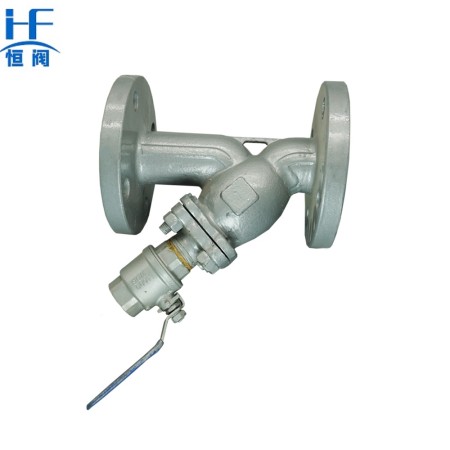

Y-type filter is a filter equipment necessary for the use of hydraulic control valves and precise mechanical products that are easily blocked. It is usually installed at the inlet end of hydraulic control valves and other equipment to prevent particulate impurities from entering the channel, causing blockage, so that valves or other equipment can not be used normally. The Y-type filter has the advantages of simple structure, low flow resistance, and can remove dirt online without dismantling.
1. The valve body adopts full channel, streamlined design, low fluid resistance and large flow rate.
2. The joints of the body, cover and piston rod are double sealed by the gasket and the sealing ring, without external leakage.
3. Valve body, piston cylinder, piston double guidance, smooth and reliable movement.
4. The introduction of advanced technology of detachable valve seat, ingenious structure, novel idea, easy maintenance and replacement.
5. The piston cylinder with the diversion hole increases the resistance appropriately to make the piston movement more stable.
Carnon steel
| mm | Lmax | Lmin | D | D1 | D2 | b-f(max | b-f(min) | Z-фd |
| 32 | 180 | - | 135 | 100 | 78 | 17-2 | - | 4-ф18 |
| 40 | 220 | 170 | 145 | 110 | 85 | 17-2 | 19-3 | 4-ф18 |
| 50 | 240 | 170 | 160 | 125 | 100 | 19-2 | 19-3 | 4-ф18 |
| 65 | 280 | 195 | 180 | 145 | 120 | 19-2 | 19-3 | 4-ф18 |
| 80 | 320 | 240 | 195 | 160 | 135 | 21-2 | 19-3 | 8-ф18 |
| 100 | 380 | 270 | 215 | 180 | 155 | 26-2 | 19-3 | 8-ф18 |
| 125 | 440 | 290 | 245 | 210 | 185 | 26-2 | 21-3 | 8-ф18 |
| 150 | 480 | 345 | 280 | 240 | 210 | 27-2 | 21-3 | 8-ф23 |
| 200 | 600 | 460 | 335 | 295 | 265 | 29-2 | - | 12-ф23 |
| 250 | 605 | - | 405 | 355 | 32 | 31-2 | - | 12-ф25 |
| 300 | 635 | - | 460 | 410 | 375 | Mar-33 | - | 12-ф25 |
| 350 | 696 | - | 520 | 470 | 435 | Mar-37 | - | 16-ф25 |
| 400 | 790 | - | 580 | 525 | 485 | Mar-39 | - | 16-ф30 |
| 450 | 850 | - | 640 | 585 | 545 | Apr-44 | - | 20-ф30 |
