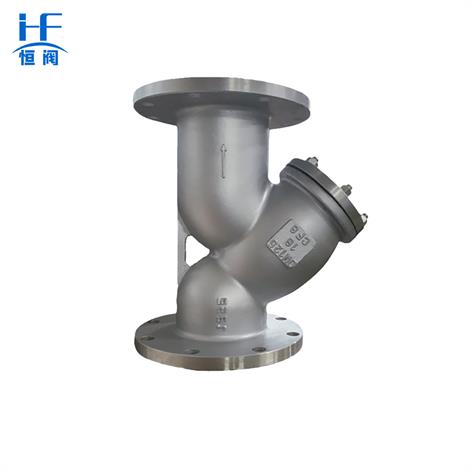

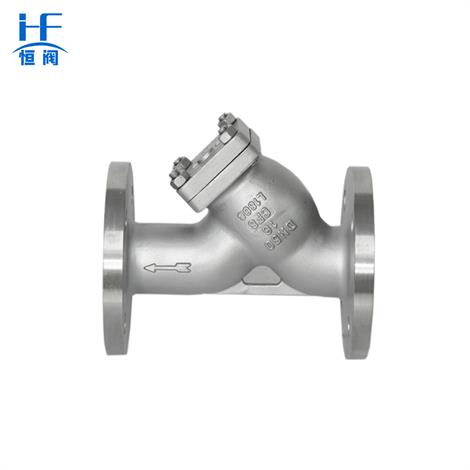

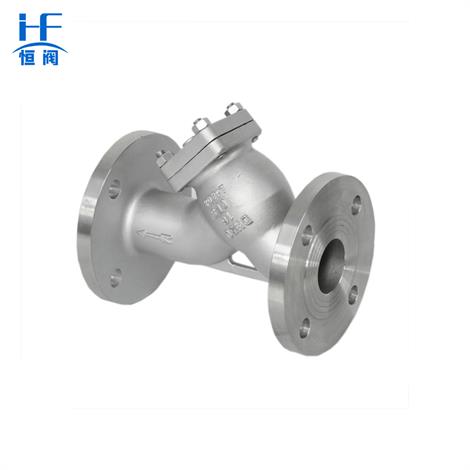

GL41H filter is an indispensable device for water, oil, gas pipelines and various equipment, which mainly removes the medium in the pipe to protect the pressure reducing valve, pressure relief valve, fixed level valve and water pump and other equipment to achieve normal operation.
Stainless steel filters are widely used in metallurgy, chemical industry, petroleum, paper making, medicine, food, mining, electricity, cities, families and other gas fields
CF8,CF8M.Cast iron,carbon steel,etc.

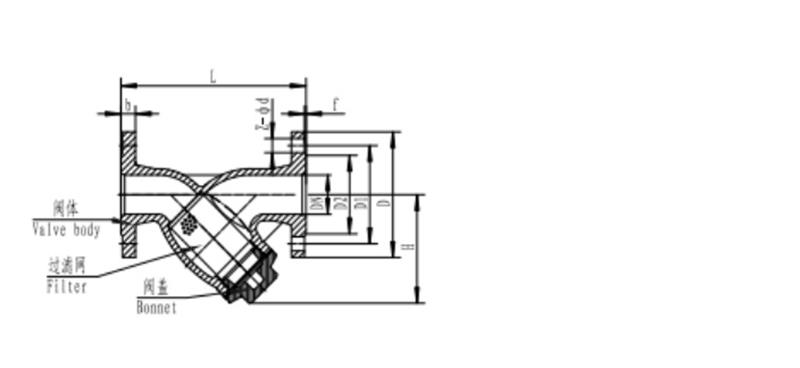

| PN.1.6C/P/R/L(MPa) | |||||||||
| DN(mm) | Main dimensions and connection dimensions(mm) | ||||||||
| L | D | D1 | D2 | Z-pd | |||||
| 15 | 130 | 95 | 65 | 45 | 4-14 | ||||
| 20 | 145 | 105 | 75 | 55 | 4-14 | ||||
| 25 | 150 | 115 | 85 | 65 | 4-14 | ||||
| 32 | 160 | 135 | 100 | 78 | 4-18 | ||||
| 40 | 200 | 145 | 110 | 85 | 4-18 | ||||
| 50 | 220 | 160 | 125 | 100 | 4-18 | ||||
| 65 | 250 | 180 | 145 | 120 | 4-18 | ||||
| 80 | 275 | 195 | 160 | 135 | 8-18 | ||||
| 100 | 315 | 215 | 180 | 155 | 8-18 | ||||
| 125 | 340 | 245 | 210 | 185 | 8-18 | ||||
| 150 | 380 | 280 | 240 | 210 | 8-23 | ||||
we will contact you in 6 hours as soon as we can.
We are factory.
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
We adhere to strict quality control procedures that begin with product design and carry through to the end of the production process using state-of -the-art quality control equipment.
We are a global stocking valve distributor with a vast inventory of valves for any job.
